Cotainer classify :

(1)Dry Cargo Container

Dry Cargo Container is suitable.

Container, uses for to transport does not need to control the temperature a grocery. This kind of container usually is an enclosed type, is equipped with the box gate in an end or the side. It usually uses for to ship the cultural item, the chemical thing, the electronic machinery, the handicraft, the medicine, the daily necessities, the textile and the instrument components and so on. This is usually the most commonly used container. Not the temperature change influence's each kind of solid bulk cargo, the pellet or the dust shape's cargo may ship by this kind of container.

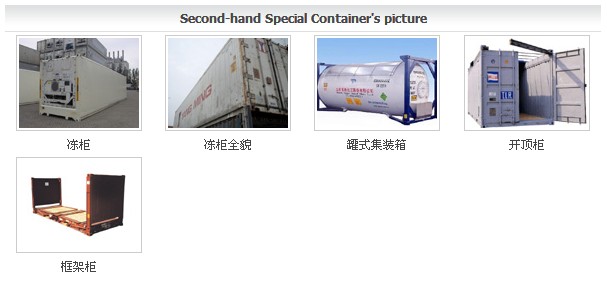

(2) Keep Constant Temperature Container

It is to transport needs to refrigerate or the heat preservation cargo. All box wall uses the container which the thermal conductivity low material heat insulation makes to be possible to divide into the following three kinds:

①The cold-storage container (Reefer Container) it is by transports the frozen food primarily, can maintain decides the temperature the heat preservation container. It specially for foods and so on transportation like fish, meat, fresh fruit, vegetables, but designs specially. At present internationally uses the cold-storage container basically divides two kinds: One kind is the container inner tube has the freezer to be called the mechanical type cold-storage container; In another kind of box does not have the freezer, but only then the heat insulation structure, namely is equipped with the air intake port and the vent in the container end wall, the box installs in the cabin, by ships' refrigerator supply air conditioning, this kind of named (outside name sets at type or collar type cold-storage container) to the suitable cold-storage container.

②The heat insulation container it is for cargos and so on ship fruit, vegetables, prevents the temperature rise to be oversized, maintains cargo fresh has the full heat insulation structure container. Usually uses in the ice making the refrigerant, the soaking time is about 72 hours.

③Ventilates the container (Ventilated Container) it is for the shipping fruit, the vegetables and so on does not need to freeze has the respiration cargo, is equipped with the air vent on the end wall and the sidewall the container, if closes the vent, similarly may take the grocery container use.

(3)Tank Container

It does not have the box to go against with the sidewall, even links the end wall also to remove, but only then ledger wall and four corner post container. This kind of container may from around, about and place above carries on the handling operation, suits loads the long big-ticket item and the deadweight cargo, like heavy duty machinery, steel products, steel pipe, lumber, steel ingot and so on. The gantry-like container does not have water tightness, feared that the wet cargo cannot ship, or covers shipping with the canvas.

(4)Bulk Container

This kind of container is in the gantry type container simplifies again, but only retains ledger wall's one kind of special structure container. Platform length and width. Is the same with the international standard container's bottom size, may use with the other container same fastener and hoists up the installment. This container's use broke has thought the container must have certain volume concept.

(5)Platform Based Container

It does not have the box to go against with the sidewall, even links the end wall also to remove, but only then ledger wall and four corner post container. This kind of container may from around, about and place above carries on the handling operation, suits loads the long big-ticket item and the deadweight cargo, like heavy duty machinery, steel products, steel pipe, lumber, steel ingot and so on. The gantry-like container does not have water tightness, feared that the wet cargo cannot ship, or covers shipping with the canvas.

(6)Platform Container

This kind of container is in the gantry type container simplifies again, but only retains ledger wall's one kind of special structure container. Platform length and width. Is the same with the international standard container's bottom size, may use with the other container same fastener and hoists up the installment. This container's use broke has thought the container must have certain volume concept.

(7)Open Top Container

This is one kind the container which does not have the rigid box to go against, but has by may the foldaway either may fold the roof board which the type top-beam support's canvas, the plastic sheeting or Tu Subu is made, other components and the general container are similar. This kind of container is suitable for to load the large-scale cargo and the deadweight cargo, like the steel and iron, the lumber, specially look like the glass plate and so on brittle deadweight cargo, hangs into the box using the crane from the crown not to be easy to damage, moreover is also advantageous in the box fixed.

(8)Car Container

It is the special-purpose container which one kind of transportation small passenger vehicle uses, its characteristic is in a simple bottom upper garment steel frame, usually does not have the box wall (including end wall and sidewall). This kind of container divides into the monolayer and the double-decked two kinds. Because the sedan car is 1.35 meters 11.45 meters highly, if installs in 8 feet (2; 438 meters) in the standard container, its volume must waste above 2/5. Therefore presented the double-decked container. This kind of double-decked container has two kinds highly: One kind is 10.5 feet (3.2 meters), one kind is 8.5 feet high 2 times. Therefore the automobile container is not the international standard container generally.

(9)Pen Container or Live StockContainer

This is the container which one kind of shipping chicken, the duck, the goose and so on live domesticated fowl and the cow, the horse, the sheep, the pig and so on live domestic animal uses. In order to obstruct my sun, the box goes against uses the plywood dew lid, the window which the side and the end surface useful aluminum silk screen makes, has the reciprocation sliding door in order to, may sweep clear trash. Is also loaded with feeds the dependents. The animal container should install generally on the ship in the deck, because in the deck the air circulation, is advantageous for the cleaning and the attendance.

(10)Garment Container

This kind of container's characteristic is, on upper side Liang is loaded with many cross rods in the box, on each cross rod dangles certain belt fasteners, the nylon belt buckle or the rope, on the ready-made clothing use clothes rack's hook, hangs directly on the belt buckle or the rope. This kind of clothing loading law belongs to the non-packing transportation, it not only saved the packing material and the packing expense, moreover reduced the hand labor, improved clothing's shipping mass.

Container terminology abbreviation

• FCL——Full Container Load
• LCL——Less Than Container Load
• 40 HC——40 High Cubic
• 40 HRF——40 High Refrigerator
• G.C——General Cargo
• S.H——Semi Hazardous
• H.Z——Hazardous
• O/T——Open Top
• F.R——Flat rack
• CY——Container Yard
• CFS——Container Freight Station
• TEU——Twenty-feet Equivalent Units
• FEU——Forty-feet Equivalent U nits
• A/W——Al Water
• MLB——Mini Land Bridge

Container sub-size

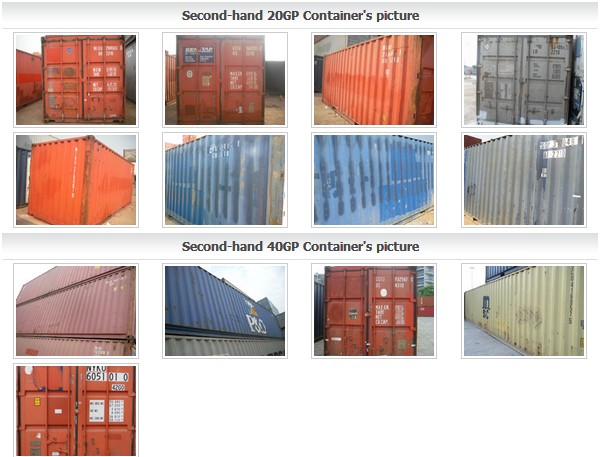

At present, the international commonly used dry container (DRYCONTAINER) are: External dimensions of 20 feet X8 feet X8 feet 6 inches, referred to as 20-foot containers; 40 feet X8 * X8-foot 6-inch feet, referred to as 40-foot containers; and more in recent years, the use of 40 feet X8 feet X9 feet 6 inches, referred to as 40-foot high cabinet.

• 20-foot counter (20'GP: 20 feet general purpose): the contents of volume equal to 5.69 meters X2.13 m X2.18 m, packing limit weighed 17.50 tons, the actual loading volume of 24-26 cubic meters .
• 40-foot counter (40'GP: 40 feet general purpose): the contents of volume equal to 11.80 meters X2.13 m X2.18 m, packing weight limit 22 tons, the actual loading volume of 54 cubic meters.
• 40-foot high cabinet (40'HQ: 40 feet HIGH CUBE) high cabinet: content product of 11.80 meters X2.13 m X2.72 m. Boxing weight limit 22 tons, the actual loading volume of 68 cubic meters.
• 45-foot high cabinet: the contents of the plot as follows: 13.58 meters X2.34 m X2.71 m, delivery is usually 29 tons gross weight, volume 86 cubic meters.
• 20-foot open top cabinet: content product of 5.89 meters X2.32 m X2.31 m, delivery 20 tons gross weight, volume of 31.5 cubic meters.
• 40-foot open top cabinet: content product of 12.01 meters X2.33 m X2.15 m, delivery gross weight 30.4 tons, the volume 65 cubic meters.
• 20-foot flat-bottomed container: the contents of the plot 5.85 meters X2.23 m X2.15 m, delivery 23 tons gross weight, volume of 28 cubic meters.
• 40-foot flat-bottomed container: the contents of the plot 12.05 meters X2.12 m X1.96 m, delivery 36 tons gross weight, volume of 50 cubic meters.
